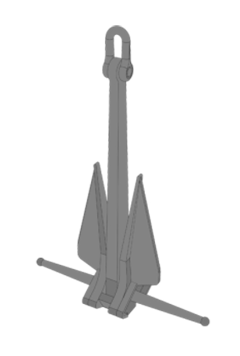

HHP Danforth Anchor
The HHP Danforth anchor is a highly sought-after and relatively lightweight anchor that is commonly utilized on small vessels. It excels in sandy and muddy terrains, while its compact design and low weight facilitate effortless retrieval and storage. This type of River Anchor enjoys significant popularity.
Surface: black tarred painting, hot-dip galvanized, Dacromet.

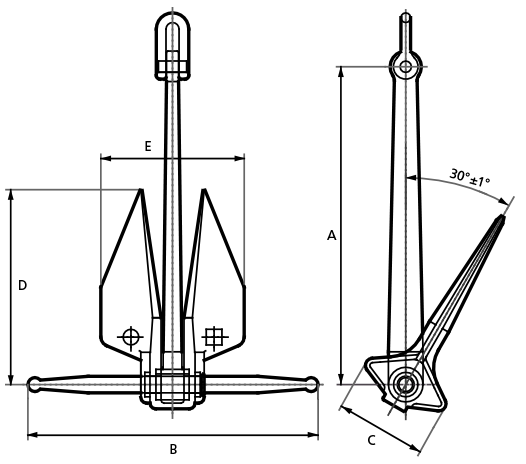

| Weight | A | B | C | D | E |
|---|---|---|---|---|---|
| Kgs | mm | mm | mm | mm | mm |
| 135 | 1350 | 1130 | 275 | 820 | 560 |
| 225 | 1600 | 1340 | 325 | 975 | 665 |
| 340 | 1720 | 1480 | 370 | 1000 | 720 |
| 455 | 1830 | 1580 | 410 | 1100 | 760 |
| 680 | 1955 | 1690 | 475 | 1180 | 815 |
| 910 | 2100 | 1820 | 525 | 1275 | 900 |
| 1135 | 2260 | 2140 | 560 | 1350 | 930 |
| 1360 | 2390 | 2260 | 595 | 1440 | 990 |
| 1820 | 2640 | 2550 | 660 | 1590 | 1050 |
| 2270 | 2780 | 2700 | 710 | 1650 | 1170 |
| 2730 | 2960 | 2810 | 750 | 1780 | 1200 |
| 3180 | 3120 | 2960 | 790 | 1880 | 1260 |
| 3635 | 3260 | 3090 | 825 | 1960 | 1320 |
| 4080 | 3380 | 3210 | 860 | 2040 | 1370 |
| 4540 | 3510 | 3330 | 890 | 2100 | 1420 |
| 5545 | 3730 | 3540 | 945 | 2240 | 1510 |
| 6350 | 3920 | 3720 | 995 | 2360 | 1590 |
| 7260 | 4100 | 4000 | 1040 | 2470 | 1660 |
| 8165 | 4270 | 4080 | 1080 | 2560 | 1730 |
| 9075 | 4570 | 4150 | 1110 | 2620 | 1770 |
| 11345 | 4710 | 4470 | 1195 | 2820 | 1910 |
| 13610 | 5000 | 4750 | 1270 | 3000 | 2025 |
