DIN763 Calibrated Chain

Chain

Back to List

DIN763 Long-Link Chain

General purpose: Dock equipment / Lashing equipment / Mooring equipment

Material: Carbon Steel / Alloy Steel / Stainless Steel 316

Surface : Hot dip Galvanized / Color Painted

Empossed : DIN763 or 763 / Traceability Code

Extra-long link to accommodate shackles throughout the chain length

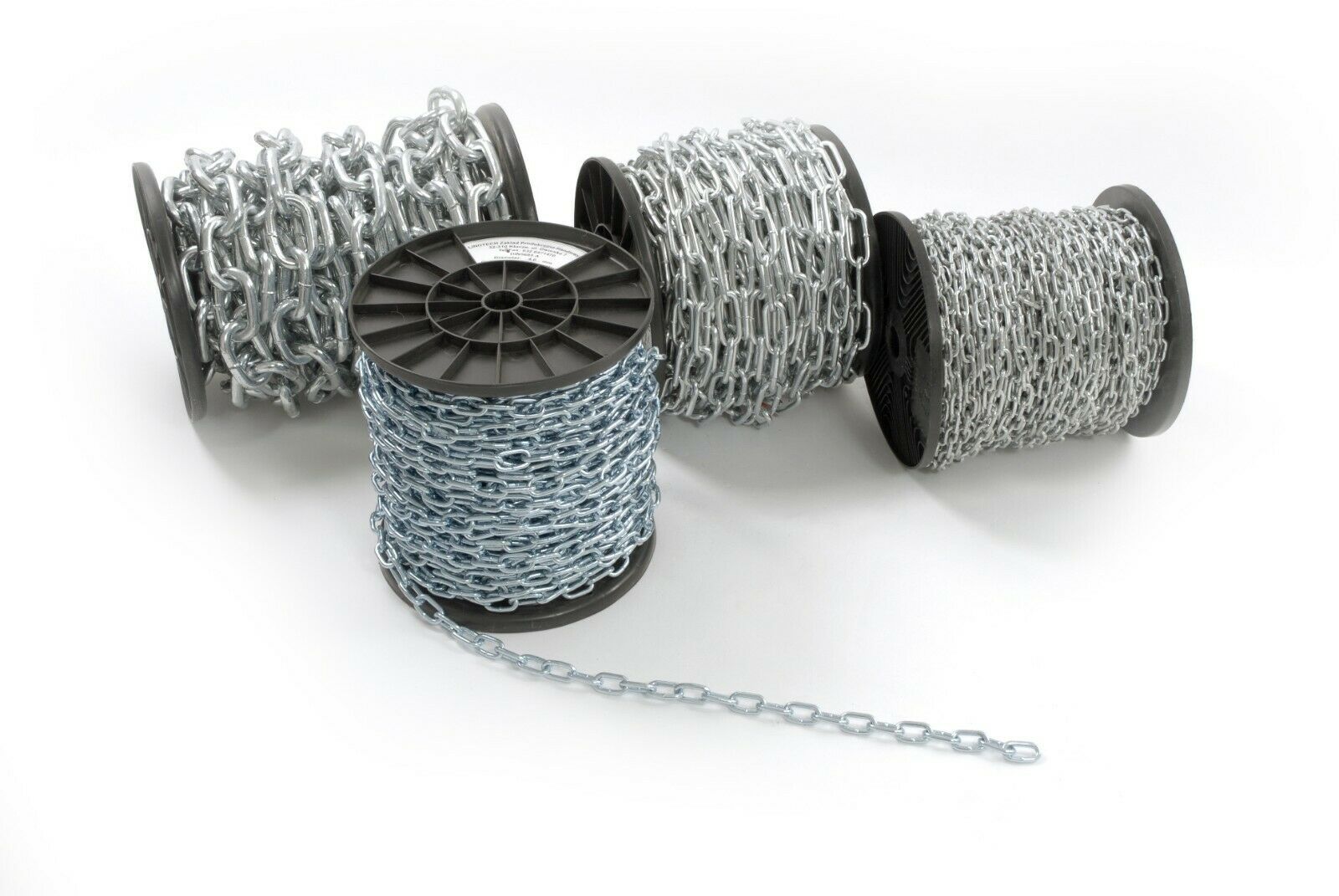

Packaging: Plywood boxes/ plywood drum / steel drum / plastic drum Warning: Not to be used for lifting or hoisting applications.

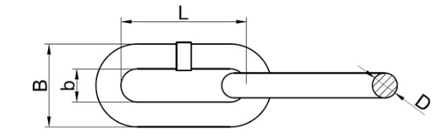

Chain Size		Pitch		Width		Working Load	Test Force	Min. Breaking Force
D	tolerance	L	tolerance	B	tolerance
mm		mm		mm		kg	kN	kN
2	± 0.10	22	± 1.0	8	± 0.4	25	0.5	1.25
2.5	± 0.12	24	± 1.1	10	± 0.5	40	0.8	2
3	± 0.15	26	± 1.2	12	± 0.6	55	1.05	3.2
3.5	± 0.20	28	± 1.3	14	± 0.7	80	1.54	3.85
4	± 0.20	32	± 1.5	16	± 0.8	100	2.5	6.5
4.5	± 0.23	34	± 1.7	18	± 0.9	128	3	8
5	± 0.25	35	± 1.8	20	± 1.0	160	4	10
5.5	± 0.25	38.5	± 1.8	22	± 1.1	195	4.2	10.5
6	± 0.30	42	± 2.0	24	± 1.2	200	5	12
7	± 0.35	49	± 2.5	28	± 1.4	300	7.5	19
8	± 0.40	52	± 2.5	32	± 1.6	400	10	25
8.5	± 0.40	56	± 2.8	34	± 1.7	460	10.2	25.5
9	± 0.50	59	± 3.0	36	± 1.8	530	10.5	32
10	± 0.50	65	± 3.2	40	± 2.0	630	16	40
11	± 0.50	72	± 3.4	44	± 2.0	790	15.8	47.5
12	± 0.60	78	± 3.6	48	± 2.3	940	18.8	56.5
13	± 0.65	82	± 4.0	52	± 2.5	1000	25	63
16	± 0.80	100	± 5.0	64	± 3.2	1600	40	100
18	± 0.90	113	± 5.2	70	± 3.2	2120	42.3	127
19	± 0.90	119	± 5.6	72	± 3.4	2370	47.3	142
20	± 1.00	120	± 6.0	75	± 3.8	2500	50	160
22	± 1.20	127	± 6.0	82	± 4.0	3170	63.3	190
25	± 1.30	140	± 6.6	85	± 4.2	4090	81.7	245
28	± 1.40	152	± 7.0	96	± 4.7	6000	120	300
32	± 1.60	171	± 7.8	108	± 5.2	8000	160	400
