DIN763 CALIBRATED STAINLESS STEEL CHAIN
Commonly used for marine, industrial application, widely used in Chemical industries, food processing and some extreme environments.
Material : AISI 304, AISI 316, AISI 316L
Surface : Polishing
Packaging: Plywood drum or reel / Steel drum / Plastic drum or reel
| DIN763 ( DIN5685C ) LONG LINK STAINLESS STEEL CHAIN | |||||
|---|---|---|---|---|---|

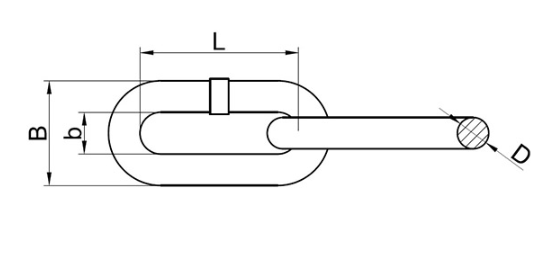

| Nominal Size | Pitch | Internal Width | Working Load Limit | Min. Breaking Force | Weight |
| D | L | b | |||
| mm | mm | mm | kg | N | kg/100m |
| 2 | 22 | 3.5 | 25 | 1250 | 6.3 |
| 2.5 | 24 | 4.5 | 40 | 2000 | 10.1 |
| 3 | 26 | 5.5 | 55 | 3200 | 14.8 |
| 4 | 32 | 7 | 100 | 6500 | 26.7 |
| 4.5 | 34 | 8 | 128 | 8000 | 37 |
| 5 | 35 | 9 | 160 | 10000 | 43.3 |
| 6 | 42 | 11 | 200 | 12000 | 62.4 |
| 7 | 49 | 12 | 300 | 19000 | 84.7 |
| 8 | 52 | 14 | 400 | 25000 | 113 |
| 10 | 65 | 18 | 630 | 40000 | 177 |
| 12 | 78 | 22 | 940 | 56500 | 254 |
| 13 | 82 | 23 | 1000 | 63000 | 302 |
| 16 | 100 | 30 | 1600 | 100000 | 457 |
