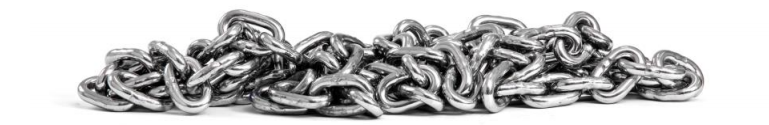

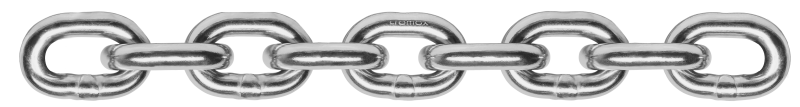

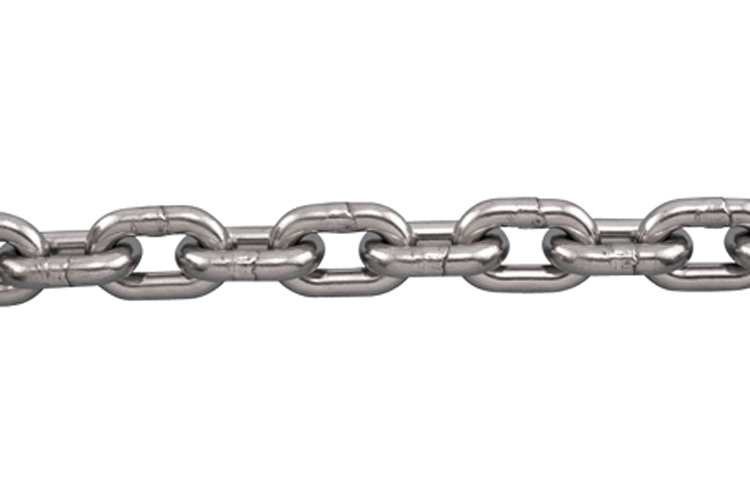

DIN766 Short-Link Chain
Meets Din 766 specifications with calibrated

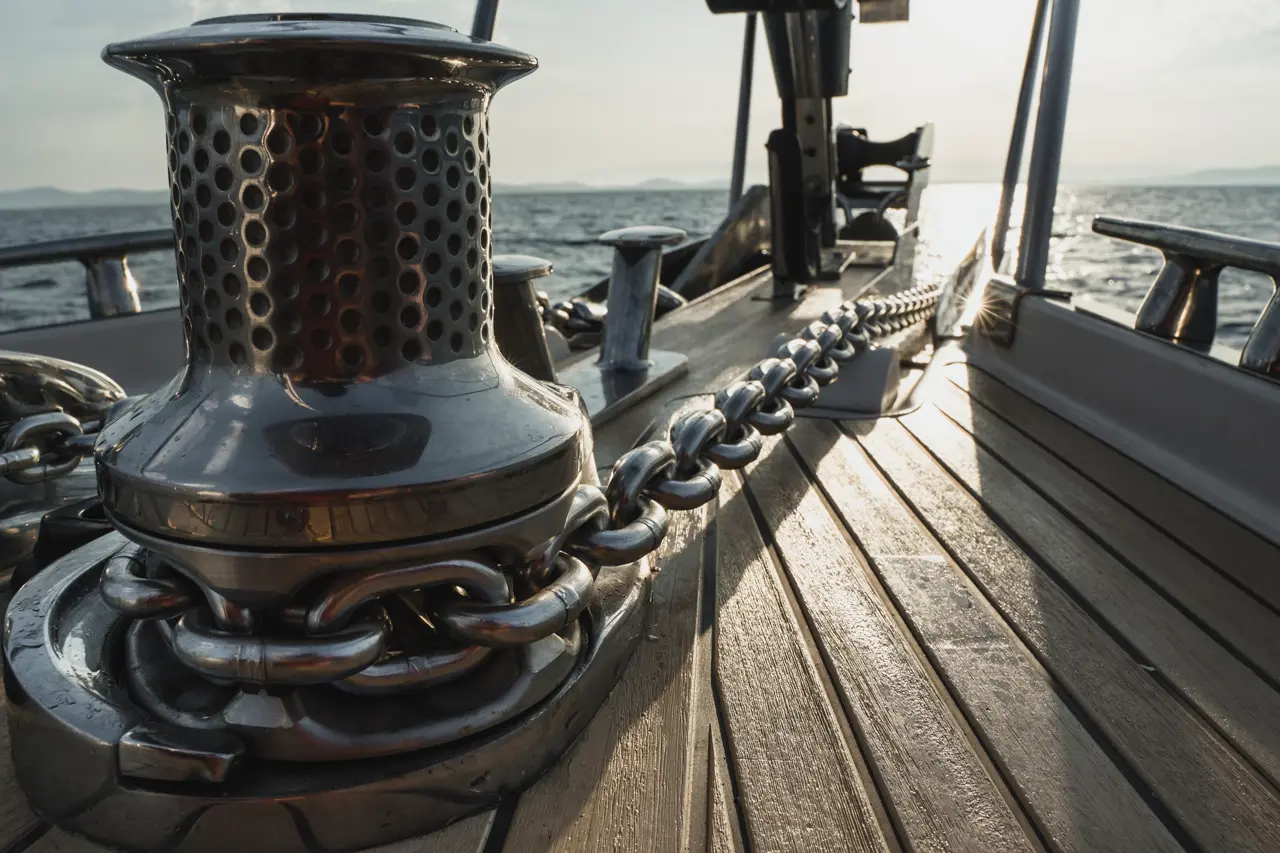

Commonly used for marine, industrial application, widely used in Chemical industries, food processing and some extreme environments. Suitable for windlass
Empossed : DIN766 or 766 / Traceability code
Surface: Polishing/ Electro Galvanized/ Hot dip Galvanized

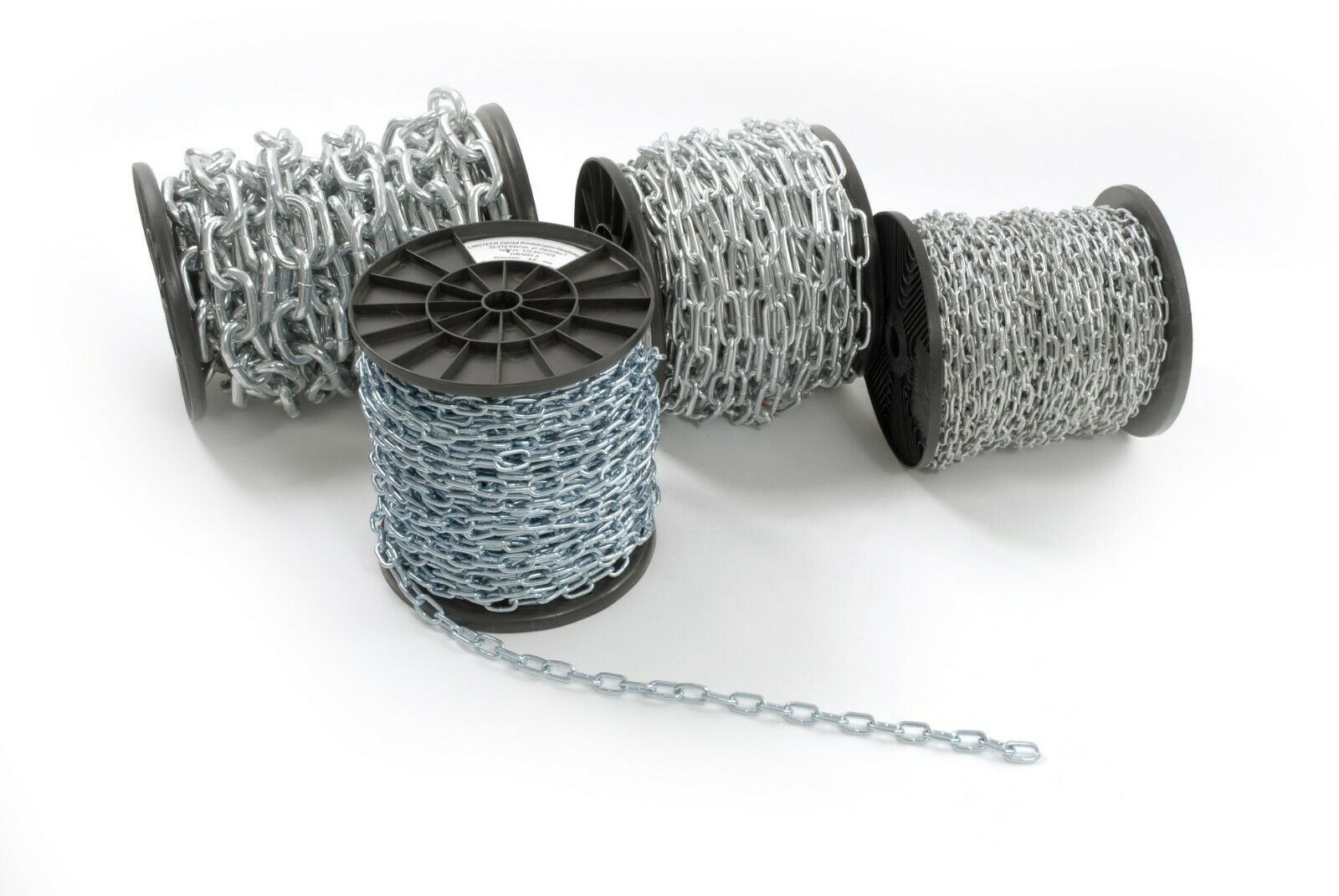

Packaging: Plywood drum or reel / Steel drum / Plastic drum or reel Warning: Not to be used for lifting or hoisting applications.
| d | Inside Length | Width | Gauge of length of 11x L | mass | Working | Test Force | Min. Breaking Force | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | inside b | outside B | kg/m | Load Limit | ||||||||
| size | mm | Tolerance | minimum | maximum | Tolerance | approx. | kg | kn | kn | |||
| 4 | 16 | +0,3 | -0,2 | 4,8 | 13,6 | 176 | +0,8 | -0,4 | 0,32 | 200 | 5 | 8 |
| 5 | 18,5 | +0,4 | -0,2 | 6 | 17 | 203,5 | +0,9 | -0,5 | 0,5 | 320 | 8 | 12.5 |
| 6 | 18,5 | +0,4 | -0,2 | 7,2 | 20,4 | 203,5 | +0,9 | -0,5 | 0,8 | 400 | 10 | 16 |
| 7 | 22 | +0,4 | -0,2 | 8,4 | 23,8 | 242 | +1,1 | -0,5 | 1,1 | 630 | 16 | 25 |
| 8 | 24 | +0,4 | -0,2 | 9,6 | 27,2 | 264 | +1,2 | -0,6 | 1,4 | 800 | 20 | 32 |
| 9 | 27 | +0,5 | -0,3 | 10,8 | 30,6 | 297 | +1,3 | -0,7 | 1,8 | 1000 | 25 | 40 |
| 10 | 28 | +0,5 | -0,3 | 12 | 36 | 308 | +1,4 | -0,7 | 2,3 | 1250 | 32 | 50 |
| 11 | 31 | +0,5 | -0,3 | 13,2 | 40 | 341 | +1,5 | -0,8 | 2,7 | 1600 | 40 | 63 |
| 13 | 36 | +0,6 | -0,3 | 15,6 | 47 | 396 | +1,7 | -0,9 | 3,9 | 2000 | 50 | 80 |
| 14 | 41 | +0,7 | -0,4 | 16,8 | 50 | 451 | 2 | -1 | 4,4 | 2500 | 63 | 100 |
| 16 | 45 | +0,8 | -0,4 | 19,2 | 58 | 495 | +2,2 | -1,1 | 5,8 | 3200 | 80 | 125 |
| 18 | 50 | +0,8 | -0,4 | 21,6 | 65 | 550 | +2,5 | -1,2 | 7,4 | 4000 | 100 | 160 |
| 20 | 56 | 1 | -0,5 | 24 | 72 | 616 | +2,8 | -1,4 | 9 | 5000 | 125 | 200 |
| 23 | 64 | +1,1 | -0,5 | 27,6 | 83 | 704 | +3,2 | -1,6 | 12 | 6300 | 160 | 250 |
| 26 | 73 | +1,2 | -0,6 | 31,2 | 94 | 803 | +3,6 | -1,8 | 15 | 8000 | 200 | 320 |
| 28 | 78 | +1,3 | -0,6 | 33,6 | 101 | 858 | +3,8 | -2 | 18 | 10000 | 250 | 400 |
| 30 | 84 | +1,4 | -0,7 | 36 | 108 | 924 | +4,2 | -2,1 | 20 | 11200 | 280 | 450 |
| 32 | 90 | +1,5 | -0,7 | 38,4 | 115 | 990 | +4,5 | -2,2 | 23 | 12500 | 320 | 500 |
| 36 | 101 | +1,7 | -0,8 | 43,2 | 130 | 1111 | 5 | -2,5 | 29 | 16000 | 400 | 630 |
| 40 | 112 | +1,9 | -0,8 | 48 | 144 | 1232 | +5,6 | -2,8 | 35 | 20000 | 500 | 800 |
| 42 | 118 | 2 | -1 | 50 | 151 | 1298 | +5,8 | -3 | 40 | 22400 | 560 | 900 |
