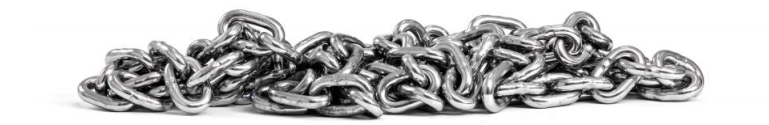

DIN766 CALIBRATED STAINLESS STEEL CHAIN
Commonly used for marine, industrial application, widely used in Chemical industries, food processing and some extreme environments.
Suitable for windlass
Material : AISI 304, AISI 316, AISI 316L
Surface : Polishing
Packaging: Plywood drum or reel / Steel drum / Plastic drum or reel
| DIN766 CALIBRATED STAINLESS STEEL CHAIN | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

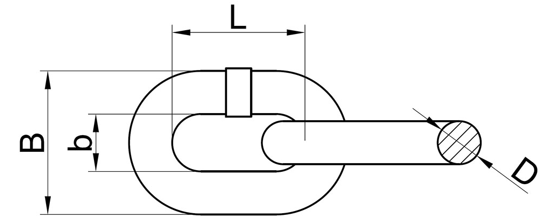

| Chain Size | Pitch | Width | Length per 11 Links | Working Load | Test Force | Min. Breaking Force | ||||||
| D | tolerance | L | tolerance | Min. b | Max. B | 11 L | tolerance | |||||
| mm | mm | + | - | mm | mm | mm | + | - | kg | kN | kN | |
| 4 | ± 0.2 | 16 | 0.3 | -0.2 | 4.8 | 13.6 | 176 | 0.8 | -0.4 | 200 | 5 | 8 |
| 5 | ± 0.2 | 18.5 | 0.4 | -0.2 | 6 | 17 | 203.5 | 0.9 | -0.5 | 320 | 8 | 12.5 |
| 6 | ± 0.2 | 18.5 | 0.4 | -0.2 | 7.2 | 20.4 | 203.5 | 0.9 | -0.5 | 400 | 10 | 16 |
| 7 | ± 0.3 | 22 | 0.4 | -0.2 | 8.4 | 23.8 | 242 | 1.1 | -0.5 | 630 | 16 | 25 |
| 8 | ± 0.3 | 24 | 0.4 | -0.2 | 9.6 | 27.2 | 264 | 1.2 | -0.6 | 800 | 20 | 32 |
| 9 | ± 0.4 | 27 | 0.5 | -0.3 | 10.8 | 30.6 | 297 | 1.3 | -0.7 | 1000 | 25 | 40 |
| 10 | ± 0.4 | 28 | 0.5 | -0.3 | 12 | 36 | 308 | 1.4 | -0.7 | 1250 | 32 | 50 |
| 11 | ± 0.4 | 31 | 0.5 | -0.3 | 13.2 | 40 | 341 | 1.5 | -0.8 | 1600 | 40 | 63 |
| 13 | ± 0.5 | 36 | 0.6 | -0.3 | 15.6 | 47 | 396 | 1.7 | -0.9 | 2000 | 50 | 80 |
| 14 | ± 0.6 | 41 | 0.7 | -0.4 | 16.8 | 50 | 451 | 2 | -1 | 2500 | 63 | 100 |
| 16 | ± 0.6 | 45 | 0.8 | -0.4 | 19.2 | 58 | 495 | 2.2 | -1.1 | 3200 | 80 | 125 |
| 18 | ± 0.9 | 50 | 0.8 | -0.4 | 21.6 | 65 | 550 | 2.5 | -1.2 | 4000 | 100 | 160 |
| 20 | ± 1.0 | 56 | 1 | -0.5 | 24 | 72 | 616 | 2.8 | -1.4 | 5000 | 125 | 200 |
