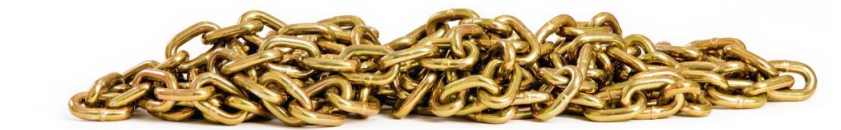

Designed for use in cargo securement, towing and logging.
Meets the latest revision of NACM specifications and D.O.T. regulations
Material is the alloy steel : 20Mn2
Quenched and tempered, proof tested
Embossed : G70 and traceability code
In accordance with 4-to-1 design factor required by NACM specifications.
Surface : Yellow chromated zinc plated finish.
| NACM2010 GRADE 70 TRANSPORT CHAIN | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Chain Size | Material Diameter | Working Load Limit (Max.) | Proof Test (Min.) | Min. Breaking Force | Inside Length | Inside Width | |||||||

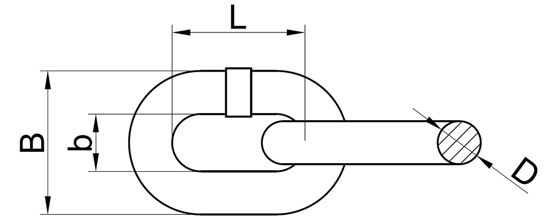

| L (Max.) | b (Min.) | ||||||||||||
| in | mm | in | mm | lbs | kg | lbs | kN | lbs | kN | in | mm | in | mm |
| 45295 | 7 | 0.281 | 7 | 3150 | 1430 | 6300 | 28 | 12600 | 56 | 1.24 | 31.5 | 0.38 | 9.8 |
| 45428 | 8.7 | 0.343 | 8.7 | 4700 | 2130 | 9400 | 41.8 | 18800 | 83.6 | 1.29 | 32.8 | 0.44 | 11.2 |
| 45359 | 10 | 0.406 | 10.3 | 6600 | 2990 | 13200 | 58.7 | 26400 | 117.4 | 1.38 | 35 | 0.55 | 14 |
| 45489 | 11.9 | 0.468 | 11.9 | 8750 | 3970 | 17500 | 77.8 | 35000 | 155.4 | 1.64 | 41.6 | 0.65 | 16.6 |
| 45293 | 13 | 0.531 | 13.5 | 11300 | 5130 | 22600 | 100.4 | 45200 | 200.8 | 1.79 | 45.5 | 0.72 | 18.2 |
| 45420 | 16 | 0.63 | 16 | 15800 | 7170 | 31600 | 140.4 | 63200 | 280.8 | 2.2 | 56 | 0.79 | 20 |
| 45358 | 20 | 0.787 | 20 | 24700 | 11200 | 49400 | 219.6 | 98800 | 439.2 | 2.76 | 70 | 0.98 | 25 |
