Commonly used for hanging of light fixtures, porch swings, playground, gym equipment, animal chains, farm and manufacturing applications
Material: low carbon steel
Surface: Self-color finish, zinc plated finish, hot dip galvanized finish, polycoated finish

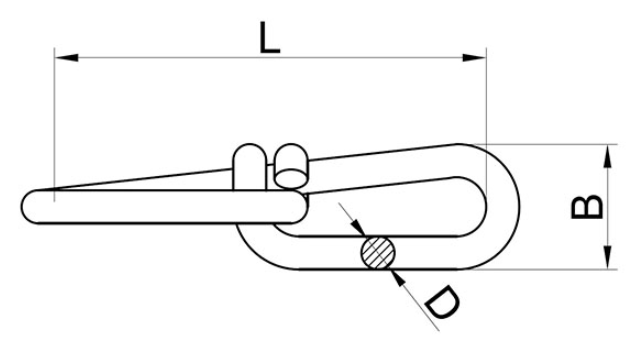

| DIAMETER | INSDE LENTH | NSIDE LENGTH | BREAKING LOAD | WEIGHT PER 100M |
|---|---|---|---|---|
| (D) MM | (L) MM | (B) MM | KG | KG |
| 1.4 | 21 | 6.5 | 16 | 4.2 |
| 1.6 | 23 | 7 | 22 | 6 |
| 1.8 | 26 | 8 | 30 | 7.3 |
| 2 | 28 | 9 | 40 | 9 |
| 2.2 | 31 | 10 | 50 | 11 |
| 2.5 | 35 | 11 | 70 | 14 |
| 2.8 | 39 | 12.5 | 90 | 17 |
| 3.1 | 41 | 14 | 120 | 21 |
| 3.4 | 44 | 15 | 140 | 26 |
| 3.8 | 46 | 17 | 160 | 34 |
| 4.2 | 50 | 19 | 170 | 41 |
| 4.6 | 55 | 20.5 | 180 | 50 |
| 5 | 60 | 22.5 | 190 | 57 |
