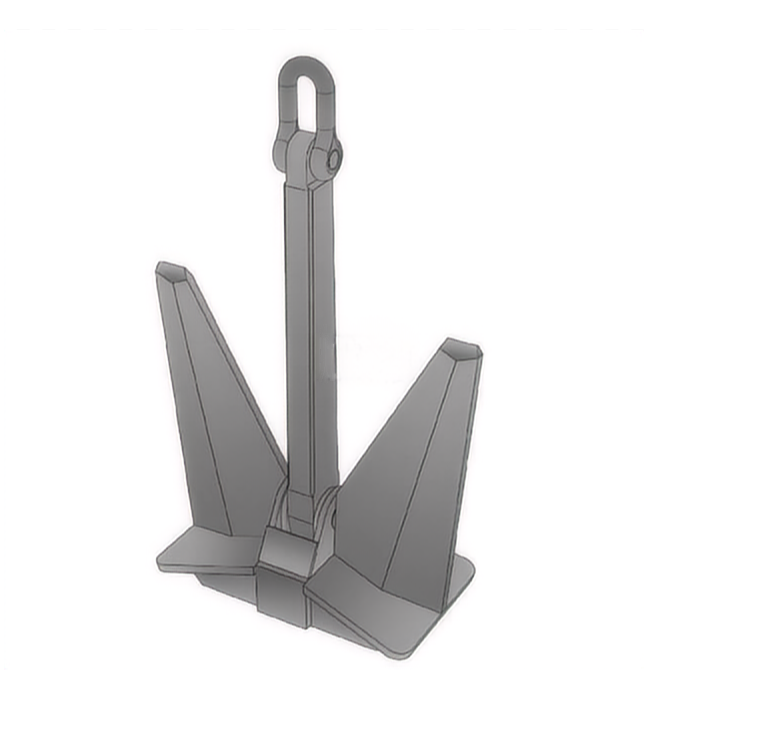

HHP N-type Pool Anchor
The N-type pool anchor is a stockless high holding power anchor commonly used as a bow anchor during sailing. It boasts a weight reduction of up to 25% compared to standard anchors. Specifically designed for modern ships, the N-type HHP anchor fits seamlessly into small anchor pockets and features hollow flukes welded from two plates, ensuring exceptional anchoring performance in diverse conditions. This construction grants the anchor superior resistance against bending forces, making it ideal for large yachts, cruise vessels, and container ships
Surface: black tarred painting, hot-dip galvanized, Dacromet
Certificate available for ABS, BV, LRS, DNV, IRS, RINA, RS, CCS, KR, NK

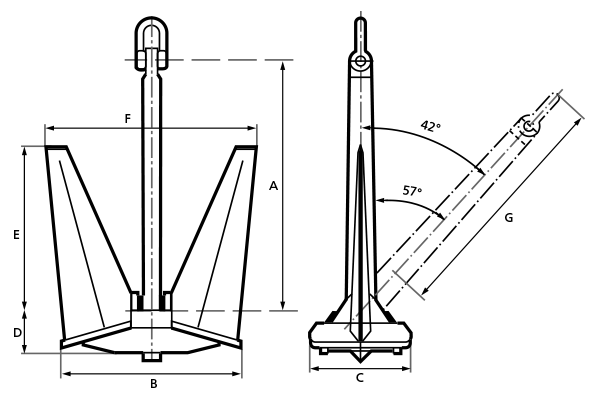

| Weight | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| Kgs | mm | mm | mm | mm | mm | mm |
| 180 | 905 | 650 | 370 | 150 | 590 | 765 |
| 225 | 1040 | 745 | 425 | 175 | 680 | 880 |
| 270 | 1090 | 780 | 450 | 180 | 715 | 925 |
| 315 | 1140 | 820 | 470 | 190 | 748 | 965 |
| 360 | 1190 | 855 | 490 | 195 | 780 | 1005 |
| 430 | 1270 | 910 | 520 | 210 | 830 | 1075 |
| 495 | 1305 | 940 | 535 | 215 | 855 | 1105 |
| 585 | 1410 | 1010 | 580 | 235 | 920 | 1195 |
| 675 | 1440 | 1035 | 590 | 240 | 940 | 1220 |
| 765 | 1528 | 1096 | 615 | 250 | 1000 | 1290 |
| 855 | 1550 | 1115 | 635 | 255 | 1015 | 1310 |
| 970 | 1615 | 1160 | 665 | 270 | 1055 | 1365 |
| 1080 | 1670 | 1200 | 670 | 275 | 1090 | 1410 |
| 1195 | 1636 | 1270 | 708 | 436 | 1010 | 1485 |
| 1305 | 1800 | 1290 | 740 | 300 | 1175 | 1525 |
| 1440 | 1910 | 1370 | 765 | 315 | 1250 | 1615 |
| 1575 | 1769 | 1385 | 777 | 472 | 1092 | 1640 |
| 1710 | 2015 | 1445 | 775 | 335 | 1320 | 1705 |
| 1845 | 1890 | 1469 | 819 | 504 | 1168 | 1729 |
| 1980 | 2080 | 1500 | 780 | 345 | 1370 | 1770 |
| 2140 | 1986 | 1543 | 860 | 530 | 1226 | 1816 |
