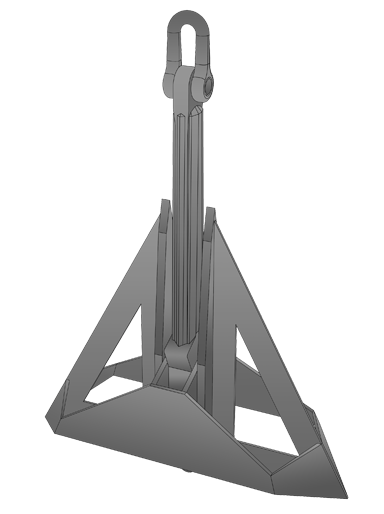

The Superior Delta anchor is a High Holding Power (HHP) anchor designed for dredging and offshore mooring applications. It offers easy handling and its HHP design ensures an excellent weight to holding ratio, making it highly efficient. The open structure design makes it ideal for anchoring in various substrates.
Certificate available for LRS, DNV

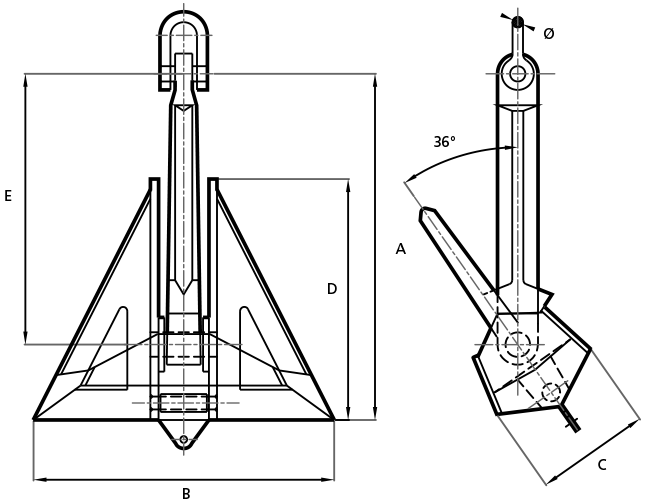

| Weight | A | B | C | D | E | φ |
|---|---|---|---|---|---|---|
| Kgs | mm | mm | mm | mm | mm | mm |
| 1000 | 2107 | 1780 | 680 | 1424 | 1600 | 67 |
| 2000 | 2714 | 2381 | 895 | 1884 | 2122 | 74 |
| 2500 | 2921 | 2541 | 963 | 2027 | 2283 | |
| 3000 | 3020 | 2560 | 983 | 2047 | 2300 | 86 |
| 4000 | 3418 | 2973 | 1127 | 2372 | 2672 | 95 |
| 5000 | 3737 | 3200 | 1213 | 2554 | 2917 | 100 |
| 7000 | 4118 | 3582 | 1358 | 2858 | 3219 | 110 |
| 8000 | 4308 | 3747 | 1421 | 2989 | 3367 | 125 |
| 9000 | 4481 | 3897 | 1478 | 3109 | 3503 | - |
| 10000 | 4641 | 4036 | 1530 | 3220 | 3628 | - |
| 12000 | 5320 | 4495 | 1689 | 3596 | 4040 | 137 |
| 13000 | 5058 | 4399 | 1668 | 3510 | 3954 | - |
| 15000 | 5750 | 4845 | 1840 | 3875 | 4355 | 160 |
| 18000 | 6080 | 5140 | 1900 | 4080 | 4610 | - |
| 20000 | 6310 | 5140 | 2010 | 4260 | 4790 | - |
| 25000 | 6795 | 5740 | 2065 | 4590 | 5106 | 195 |
| 30000 | 7208 | 6090 | 2277 | 4858 | 5463 | - |
| 40000 | 7850 | 6650 | 2480 | 5290 | 5945 | - |
