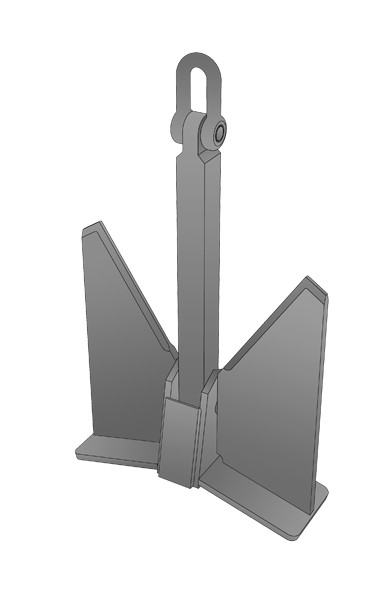

SHHP/VHHP/HHP TW-type Pool Anchor
The SHHP/VHHP POOL TW is a stockless anchor with exceptional holding power, allowing for a 50% reduction in weight compared to conventional anchors. These robust anchors are particularly suitable for closing small pockets. The Super High Holding Power POOL TW anchors are widely used on various types of vessels, available in standard or fully balanced models. Fully balanced anchors feature flukes that automatically return to their upright position, preventing them from getting stuck in the anchor pocket.
Surface: black tarred painting, hot-dip galvanized, Dacromet
Certificate available for ABS, BV, LRS, DNV, IRS, RINA, RS, CCS, KR, NK

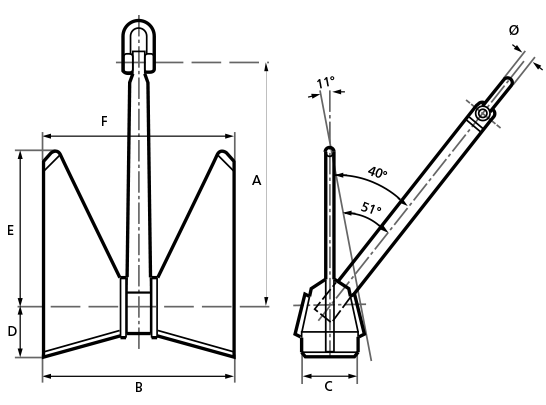

| Weight | A | B | C | D | E | F | Φ |
|---|---|---|---|---|---|---|---|
| Kgs | mm | mm | mm | mm | mm | mm | mm |
| 17 | 381 | 354 | 134 | 135 | 229 | 351 | 77 |
| 25 | 434 | 403 | 152 | 154 | 260 | 399 | 87 |
| 33 | 476 | 442 | 167 | 168 | 286 | 437 | 95 |
| 37 | 94 | 459 | 174 | 175 | 297 | 454 | 99 |
| 50 | 546 | 508 | 192 | 193 | 328 | 502 | 109 |
| 62 | 587 | 546 | 206 | 208 | 352 | 540 | 117 |
| 79 | 637 | 591 | 223 | 225 | 382 | 585 | 127 |
| 97 | 682 | 633 | 239 | 241 | 409 | 627 | 137 |
| 114 | 719 | 668 | 252 | 255 | 432 | 661 | 144 |
| 138 | 767 | 712 | 269 | 271 | 460 | 705 | 153 |
| 149 | 786 | 731 | 276 | 278 | 472 | 723 | 157 |
| 167 | 817 | 759 | 287 | 289 | 490 | 751 | 164 |
| 184 | 844 | 784 | 296 | 299 | 506 | 776 | 169 |
| 202 | 870 | 809 | 306 | 308 | 522 | 800 | 174 |
| 219 | 894 | 831 | 314 | 317 | 537 | 822 | 179 |
| 237 | 918 | 853 | 322 | 325 | 551 | 844 | 183 |
| 255 | 941 | 874 | 330 | 333 | 565 | 865 | 189 |
| 272 | 961 | 893 | 337 | 340 | 577 | 884 | 192 |
| 294 | 986 | 917 | 346 | 349 | 592 | 907 | 198 |
| 320 | 1015 | 943 | 356 | 359 | 609 | 933 | 203 |
